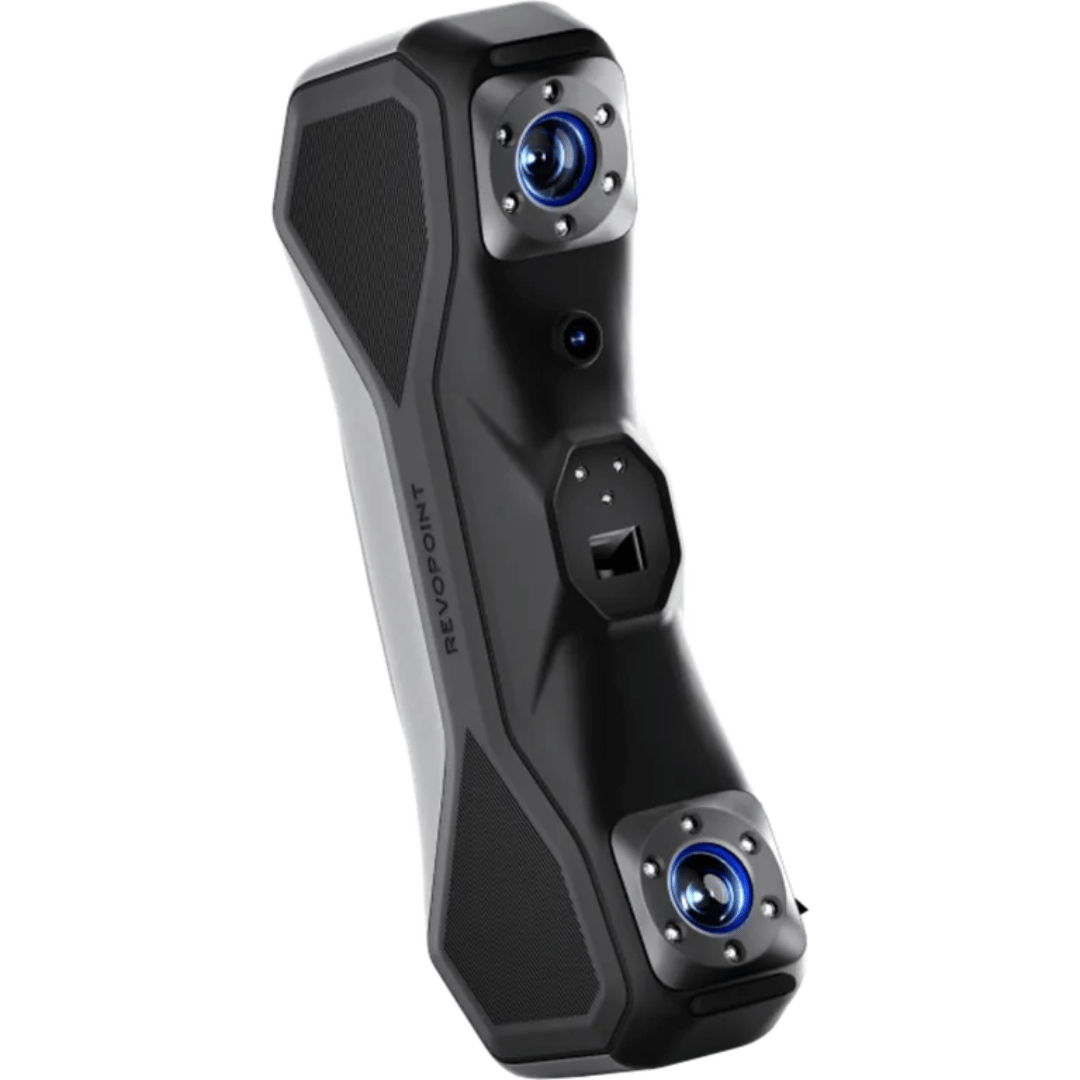

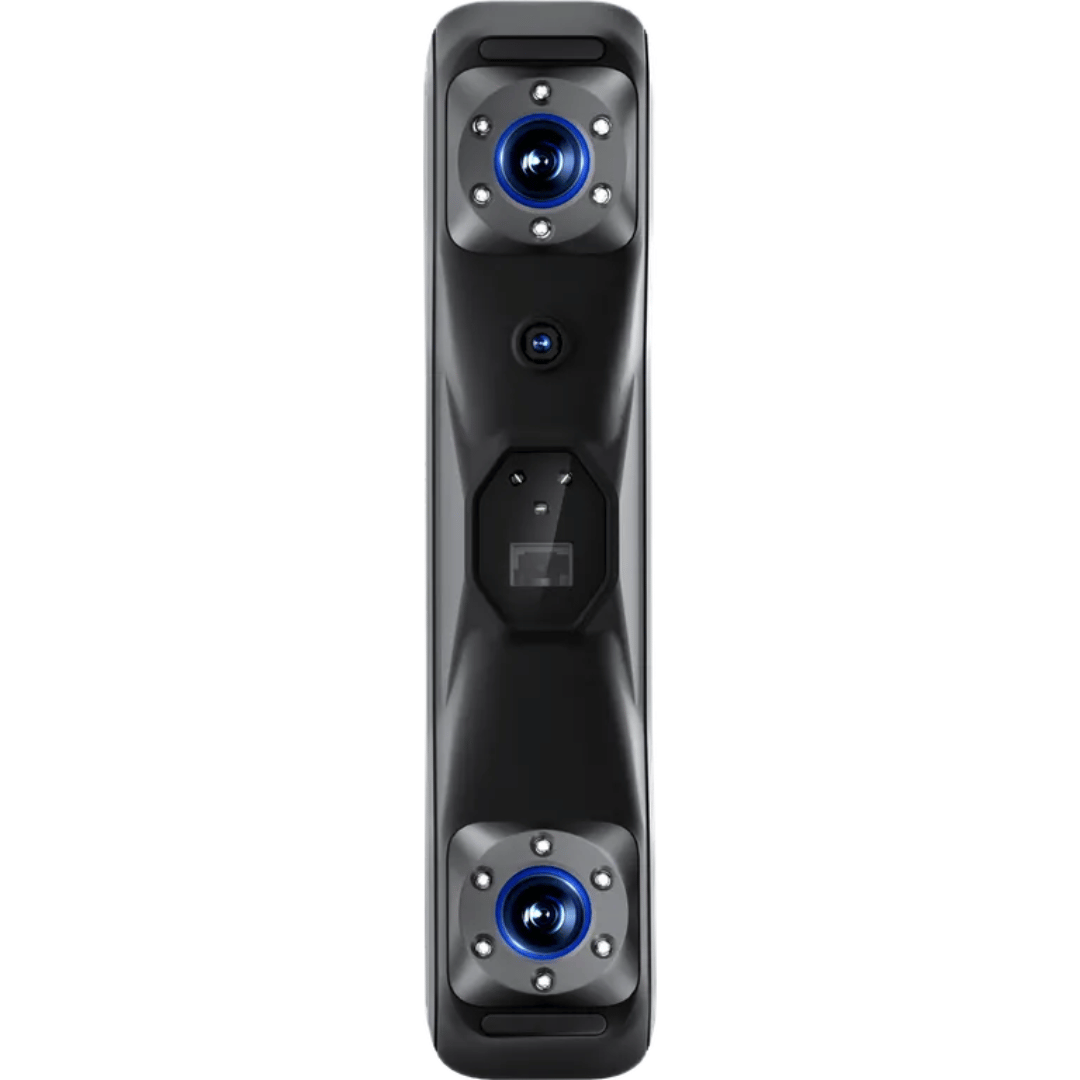

RevoPoint MetroX 3D Scanner
The Revopoint MetroX 3D scanner revolutionises 3D scanning with cutting-edge blue hybrid laser technology and structured light. Featuring four versatile scanning modes and ultra-fast processing, the MetroX delivers professional-grade results while staying budget-friendly.[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1733932175406{padding-bottom: 40px !important;}” conditional_render=”%5B%7B%22value_role%22%3A%22administrator%22%7D%5D”][vc_column][vc_column_text]
Versatility Through 4 Scanning Modes
The Revopoint MetroX is the ultimate tool for capturing every detail of small to medium-sized objects with precision and ease. From flat surfaces to intricate details, this scanner delivers exceptional results.
Key Features:
Cross Lines Mode: Effortlessly scan flat, low-detail areas on shiny or black surfaces without the need for scanning spray. With 14 crossed blue laser lines and speeds of up to 800,000 points per second, the MetroX ensures accurate and efficient results.
Parallel Lines Mode: Capture complex surfaces and intricate details with precision. This mode, featuring 7 blue laser lines, provides exceptional clarity for highly detailed 3D models.
Automatic Turntable: Simplify your workflow with the dual-axis turntable. Paired with Revo Scan and the MetroX, you can create a flawless digital twin of your object with a single click.
Full-Field Blue Structured Light: Achieve marker-free scans of complex objects in seconds, capturing up to 7 million points per second. With 62 lines of structured blue light, it’s perfect for both detailed and less detailed objects.
Note: For optimal results in “Full-Field” and “Automatic Turntable” modes, applying scanning spray to dark or shiny surfaces is recommended.[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1733932183582{padding-bottom: 40px !important;}” conditional_render=”%5B%7B%22value_role%22%3A%22administrator%22%7D%5D”][vc_column width=”1/2″][vc_column_text]
Metrological Accuracy
Trust the MetroX for ultra-accurate results (up to 0.03 mm) and exceptional precision (up to 0.01 mm), delivering 3D models ready for professional applications.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]
Easy Operation

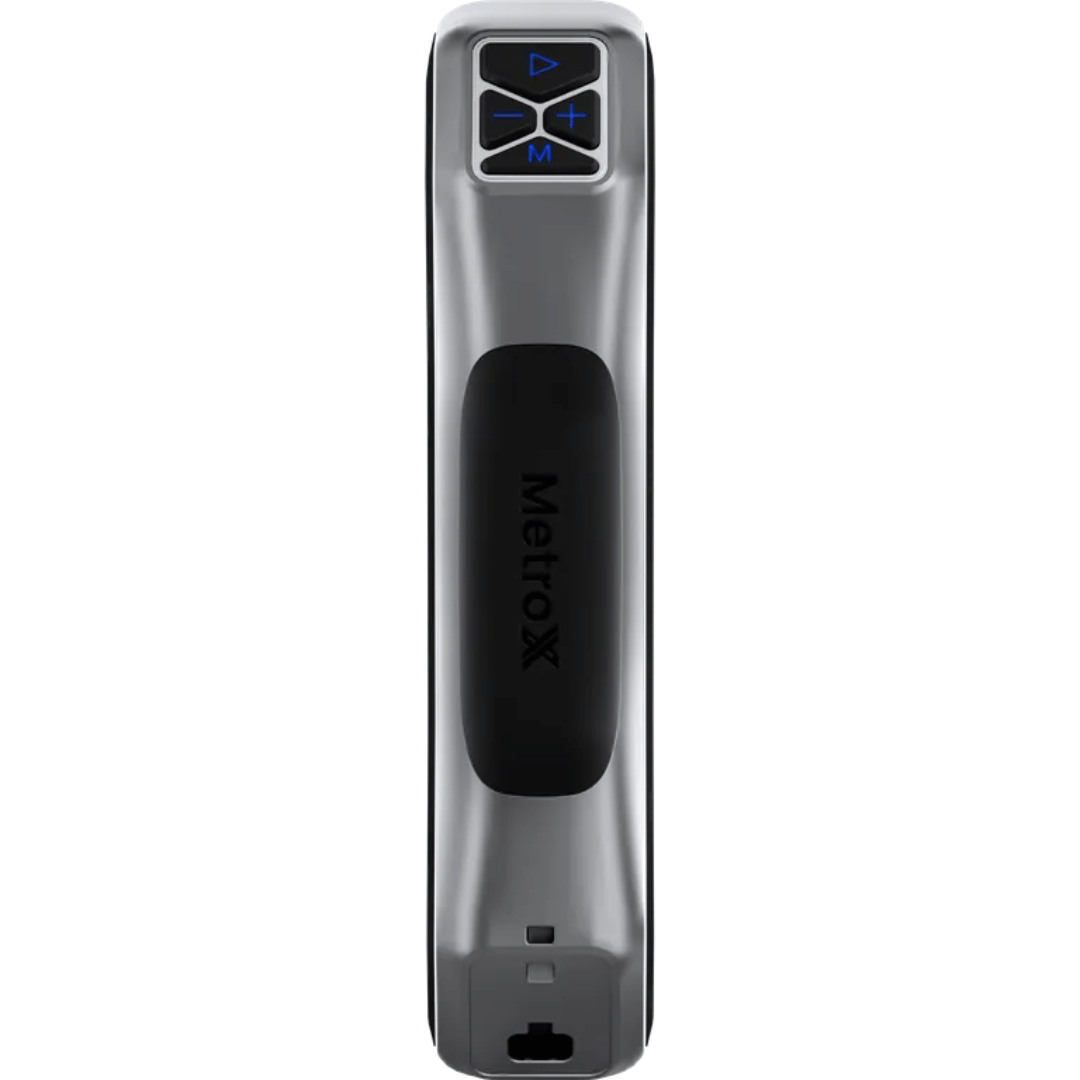

Effortlessly control your scans with the intuitive 4-button system. Start, pause, and adjust camera distance seamlessly while working with the digital preview.[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1733932191110{padding-bottom: 40px !important;}” conditional_render=”%5B%7B%22value_role%22%3A%22administrator%22%7D%5D”][vc_column width=”1/2″][vc_column_text]
Flexible Recording
Utilise three versatile tracking modes: Detail Mode for capturing intricate objects, Marker Mode for object-specific tracking, and Global Marker Mode for enhanced volumetric accuracy.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]
Real Colour Scans
With the HD RGB camera, capture realistic, color-accurate scans effortlessly using the auto turntable mode.[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1733932200895{padding-bottom: 40px !important;}” conditional_render=”%5B%7B%22value_role%22%3A%22administrator%22%7D%5D”][vc_column width=”1/2″][vc_video link=”https://youtu.be/PTnksH9WkMg?si=aO-s6FngAZtX7V_y”][/vc_column][vc_column width=”1/2″][vc_video link=”https://youtu.be/dllH8m7XsJA?si=6WTgoMXtgvVOPvs7″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Technical Specifications
| Scanner type | Turntable & Mobile |
| Dimensions | 209 x 88 x 44 mm |
| Weight | 508 g |
| For object size | Small to medium-sized |
| Technology | Full-field structured lighting system |
| Frame accuracy | Up to 0.03 mm |
| Volumetric accuracy | 0.03 mm + 0.1 mm x L (m) |
| Single detection range from close distance | 160 x 70 mm at 200 mm |
| Single detection range from the greatest distance | 320 x 215 mm at 400 mm |
| Min. scan volume | 10 x 10 x 10 mm |
| Max. scan volume | 1 x 1 x 1 m |
| Scan speed, up to | Multi-line laser scan: 800,000 points/s Full-field scan with structured light: 7,000,000 points/s |
| 3D light source | 14 blue cross lines 7 blue parallel lines 62 lines of blue full-field structured light |
| Additional light | 12 blue LEDs |
| Tracking methods | Feature, Marker, Global Marker |
| Interfaces | USB Type-C |
| Output file format | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| CPU | 4-core ARM, 2.0 GHz |
| Operating system | Windows 10/11 (64-bit), macOS 11.0 (or later) |
| Minimum PC requirements | macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16GBWindows CPU: Intel i7 10th Gen 10700 or AMD Ryzen 7 5800 RAM ≥ 32GB GPU (optional): NVIDIA GeForce RTX 3050 (8GB) |
| Recommended PC requirements | macOS CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra RAM ≥ 24GBWindows CPU: Intel i9 12th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8GB) or better |
