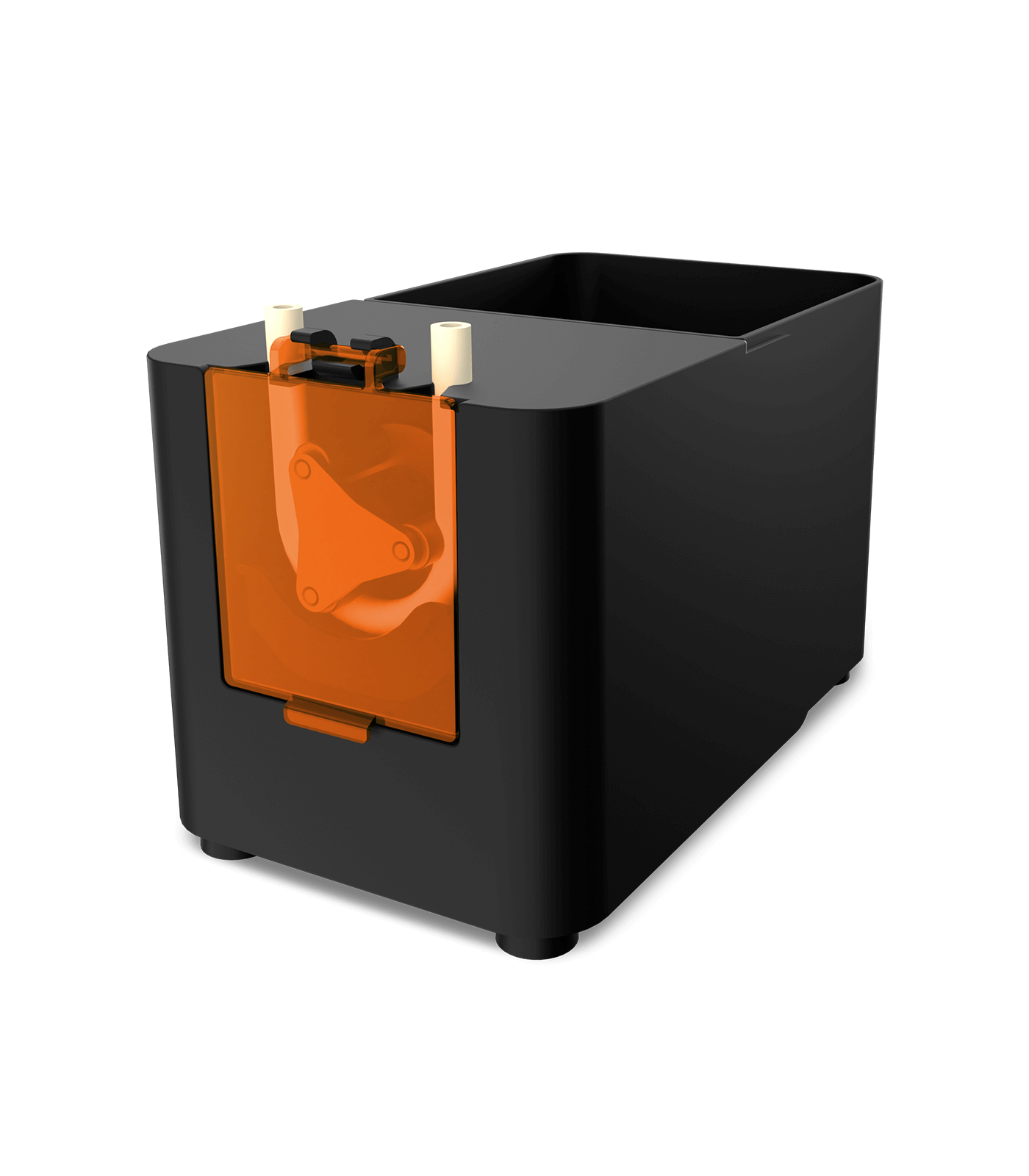

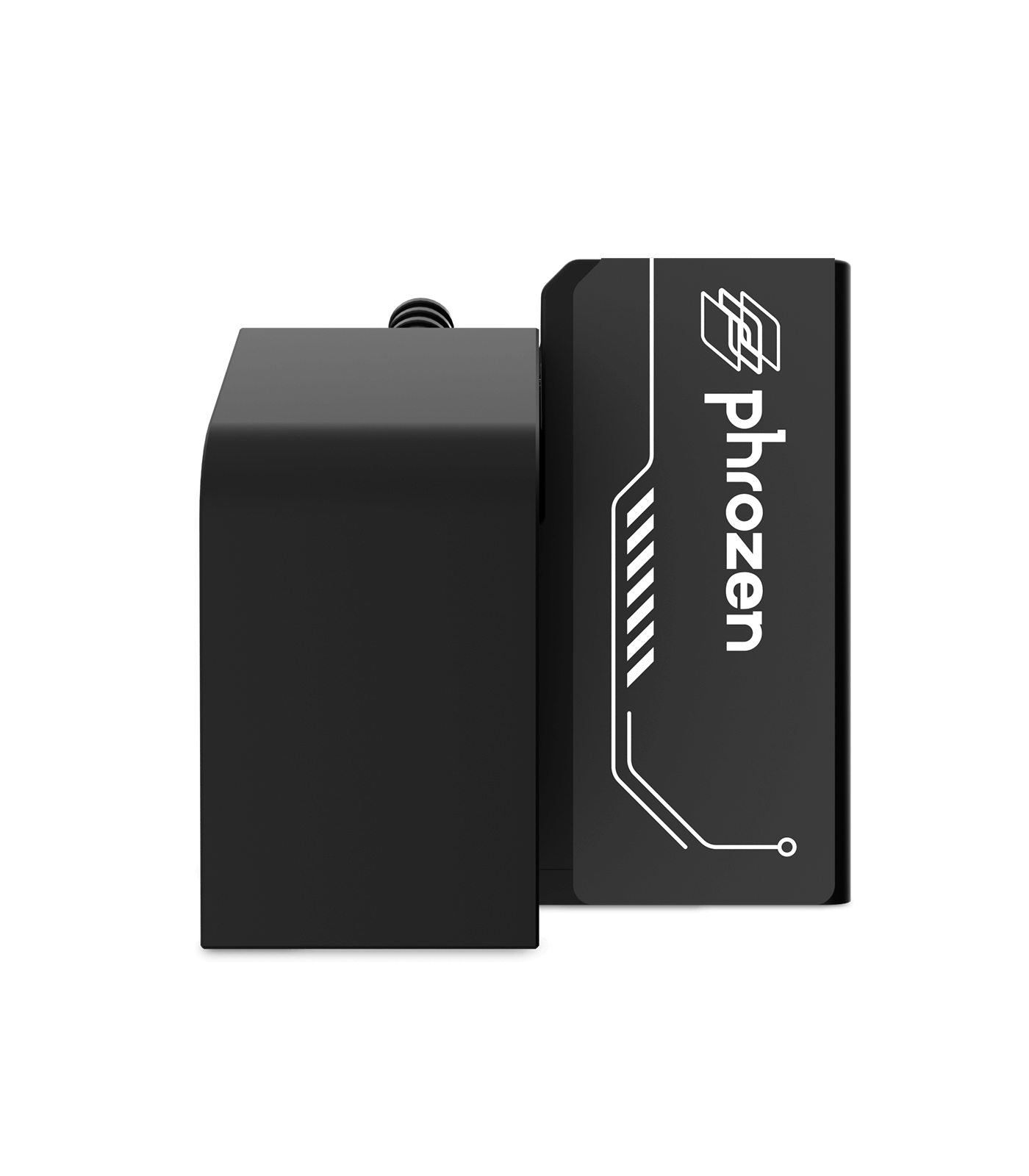

Phrozen Pump and Fill System
The Phrozen Pump & Fill system seamlessly refills your resin during printing. This system can be effortlessly added to your printer, enabling it to autonomously detect and replenish resin as it nears the minimum level. After printing, the pump efficiently retrieves any residual resin, streamlining the cleaning procedure.
Key Features of the Phrozen Pump and Fill
- Automated resin replenishment – a self-operating system for pumping and refilling resin.
- Resin level detection – ensures sufficient resin for printing.
- Resin retrieval mechanism – following printing, it efficiently pumps back resin, enhancing the cleaning process.
- Easy to use and install
- Please note – The Phrozen Pump and Fill system is only compatible with the Phrozen Sonic Mega 8K S 3D Printer.
How To Install
- Remove the side baffle of the Phrozen Sonic Mega 8K S 3D printer and use an Allen wrench to loosen the screws on the machine’s surface panel.
- Thread the inlet hose through the hole positioned on the side of the printer. This hole can be accessed by detaching the previously mentioned baffle.
- Secure the inlet pump onto the surface panel of the printer using the screws initially removed. Then, insert both the servo cable and sensor cable into the printer through the surface panel hole. Use the Allen wrench to take off the printer’s side cover.
- Attach the servo cable and sensor cable to the printer’s mainboard. Ensure proper connection to the respective colour-coded slots, then reattach the removed side cover.

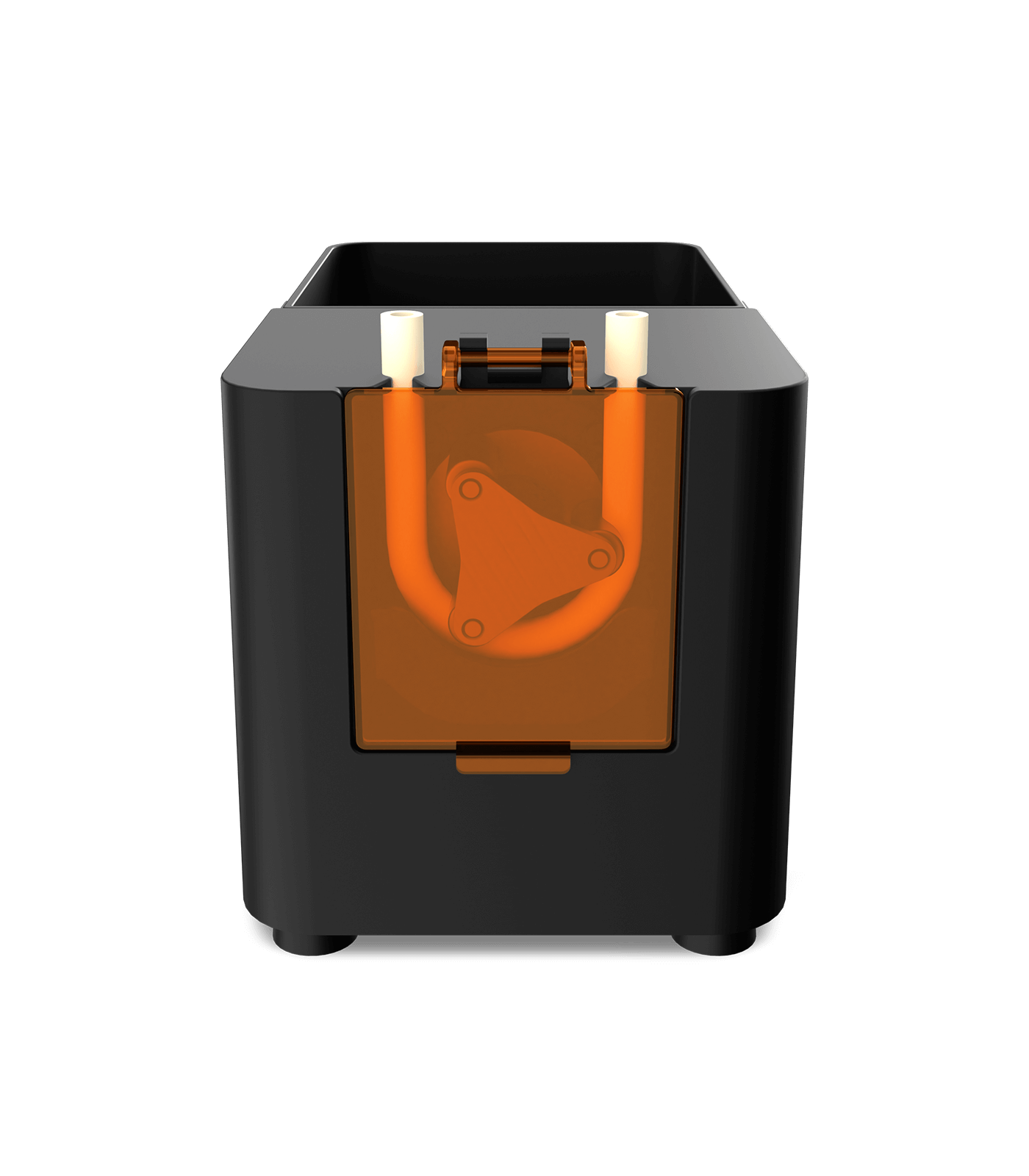

- Insert the pump lid into the resin bottle and position the bottle in the designated slot on the pump case. Once the bottle is secure, insert the bottle cap infusion tube into the peristaltic tube located on the pump case’s left side.
- Connect the two ends of the lid data cable. Fasten one end to the pump lid and the other to the pump case. Then, insert the inlet hose into the peristaltic tube located on the pump case’s right side.
- To complete the installation, connect the pump data cable to the hole on the left rear side of the printer and the slot on the rear side of the pump case.
