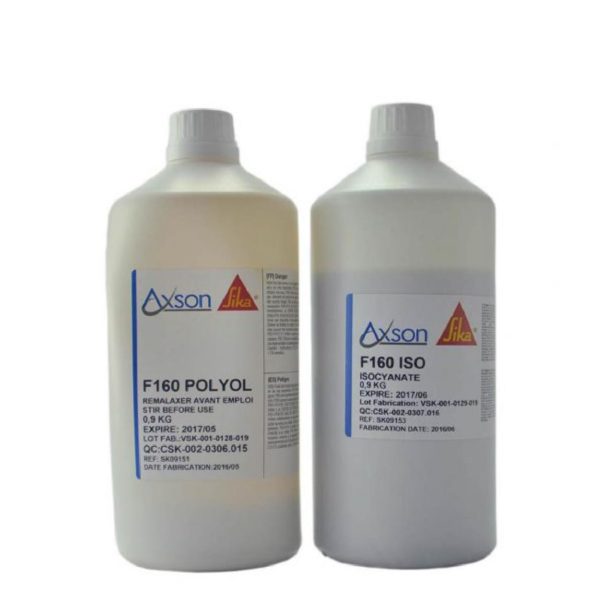

Axson F160 is an unfilled fast cast polyurethane resin used for negatives, moulds, masters and mock-ups using the unfilled product or filled with RZ 30150 mineral filler in order to avoid an exothermic reaction and to get easy machining. F160 is also used for thermo-forming masters using the product filled with RZ 209/6 aluminium powder in order to increase thermal conductivity.
This filled system is more rigid than the F180-1 allowing it to retain its shape even in thin section. It stays fluid long enough to make filling even small cavities easy. This resin is also much easier to paint than many other fast cast resins.
Characteristics and Advantages
– Fast cast polyurethane
– Phthalate free
– Can be filled
– Potlife 2.30 min
– Tg ~112°C
– Quick setting system
– Low viscosity
– Good temperature resistance after heat curing
– Easy-to-use mix ratio (1:1 by weight)
– Adjustable filler content
Unfilled Fast Cast Resins
The unfilled fastcast resins are usually used for making detailed models and mouldings with thin walls due to their excellent flowability. They can, however, be cast in thicker layers by adding filling materials to them.
